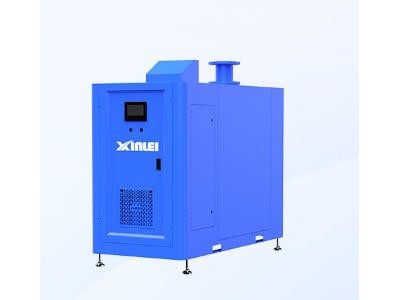

Magnetic Levitation Centrifugal Blower
The magnetic levitation centrifugal blower draws on the technology of aircraft turbine engines and is a new concept of single-stage high-speed centrifugal blower. It adopts three core technologies, namely "high-speed direct-connected motor", "magnetic levitation bearing" and "high-precision three-dimensional flow impeller", and opens a new era of high-efficiency, high-performance, low-noise and low-energy consumption blowers. The three-dimensional flow impeller is directly connected to the rotor, with zero transmission loss. It is a long-life, maintenance-free, green and environmentally friendly product with an oil-free lubrication system.
Power：22-750kWPressure：40-120kPa
| Product Comparison | Magnetic Levitation Centrifugal Blower |
Compress mode | Centrifuge |
| Flow regulation range | 45-100% |
| Surge | Have |
| Bearing type | Magnetic suspension bearing |
| Bearing life | More than 20 years semi-permanent |
| The motor type | High speed permanent-magnet synchronous motor |
| Motor starter | Variable frequency start |
| Noise(dB) | 70-80dB |
| Vibration | No |
| Lubrication | 100% lubricant-free |
| Speed | 10000-50000rpm |
| Working condition adaptability | Need more ideal and stable working conditions |
| Environmental requirements | High environmental requirements for dust, humidity, etc |
PLC Electronic Control System
-Adopt international brand PLC. Real-time monitor the system operation data and trajectory;
-Multiple protection and early warning functions.
Permanent Magnet High Speed Engine
-The PMSM permanent magnet synchronous motor is optimized for high speed rotation. The efficiency can reach more than 97%. The inverter can be used for precise speed control;
-Precision machined ternary flow impeller;
-Five degrees of freedom magnetic bearing;
-Liquid cooling/air cooling mode.
High Efficiency Inverter
-Adopt well-known brand inverter. High stability and reliability；
-Provide a minimization algorithm for high speed rotation；
-By adjusting the frequency(HZ) to achieve the high speed rotation function of saving energy.
Magnetic Bearing Controller
-Full digital controller;
-Superior damping function;
-Multifunctional monitoring capability;
-Efficient service interface.
Intelligent Operation Panel
-The touch screen monitors the operation of device in real time；
Intelligent remote control；
-Automatic fault alarm. Easy to analyze the cause of fault.
